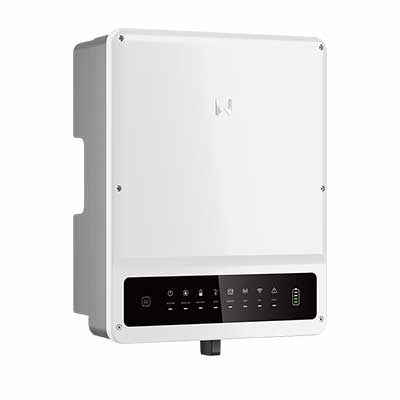

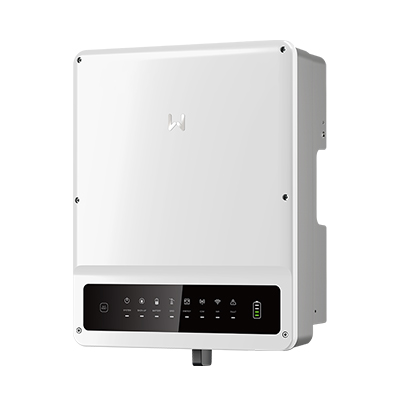

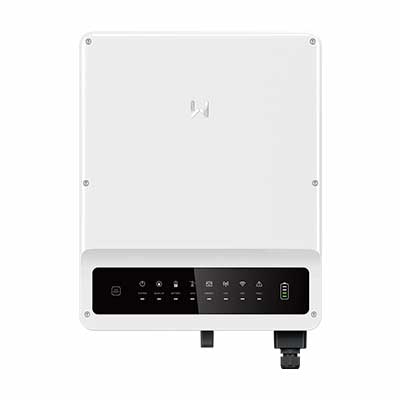

| Model | GW6000N-EH |
| Nominal Battery Voltage (V) | 350 |
| Battery Voltage Range (V) | 85 ~ 460 |
| Max. Continuous Charging Current (A) | 25 |
| Max. Continuous Discharging Current (A) | 25 |
| Max. Charge Power (W) | 6000 |
| Max. Discharge Power (W) | 6000 |
| Max. Input Voltage (V) | 580 |
| MPPT Operating Voltage Range (V) | 100 ~ 550 |
| Start-up Voltage (V) | 90 |
| Nominal Input Voltage (V) | 380 |
| Number of MPP Trackers | 2 |
| Number of Strings per MPPT | 1 |
| Nominal Apparent Power Output to Utility Grid (VA) | 6000 |
| Max. Apparent Power Output to Utility Grid (VA) | 6000 / 6600 * 1 |
| Nominal Output Voltage (V) | 230 / 220 *5 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Max. Output Apparent Power (VA) | 5000 |
| Max. Efficiency | 5000 (6000@60sec) |
| European Efficiency | 97.6% |
| Max. Battery to AC Efficiency | 97.0% |
| MPPT Efficiency | 96.6% |
| Communication with BMS | 99.9% |
| Communication with Meter | RS485, CAN |
| Communication with Portal | RS485 |
| Operating Temperature Range(°C) | -25 ~ +60 |
| Ingress Protection Rating | IP65 |
| Mounting Method | Wall Mounted |
| Weight | 17 kg |
| Dimension | 354 × 433 × 147 mm |
